ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container

Ask Lasest Price
Brand Name :	QUALITY
Model Number :	40ft
Certification :	ISO 9001:2008,ISO 18001,CE
Payment Terms :	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :	1500 Units/Month
Delivery Time :	15 Days

Add to Cart

Product Details
Company Profile

ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container

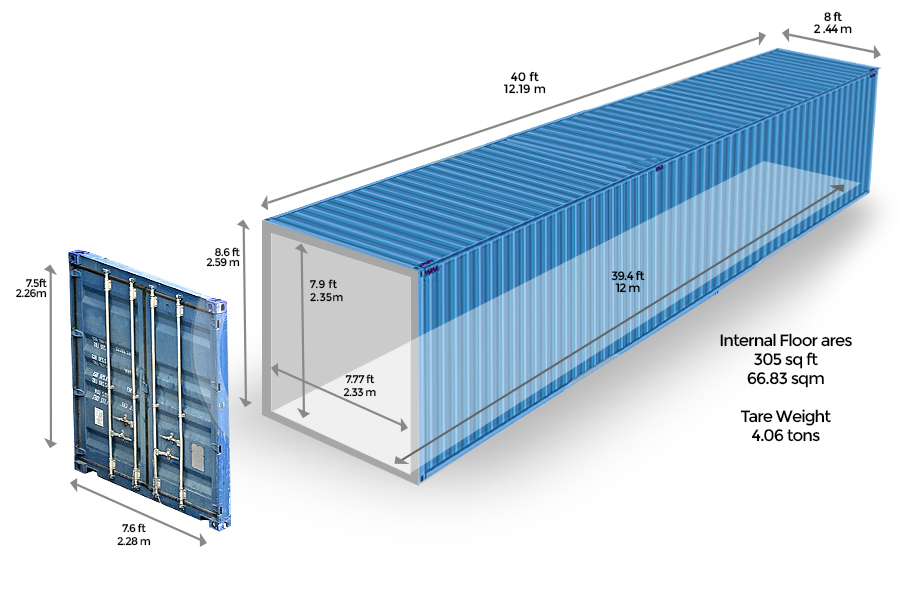

Technical Specification For 40' x 8' x 9'6" ISO Type Dry Cargo Steel Container

5 . Dimensions and Ratings

5.1 Dimension

External Dimensions

Internal Dimensions

Length

12,192 ( 0, -10 ) mm

12,032 ( 0, -10 ) mm

Width

2,438 ( 0, -5 ) mm

2,352 ( 0, -5 ) mm

Height

2,896 ( 0, -5 ) mm

2,698 ( 0, -5 ) mm

No part of the container will protrude beyond the external dimensions

mentioned above.

Maximum allowable difference between two diagonals on any one of the

following surface are as follow:

Roof, Bottom and Side Diagonals.......... 19 mm.

Front and Rear Diagonals.......... 10 mm.

5.2 Door Opening

Width ..................2,340 ( 0,-5 )mm

Height ...................2,585 ( 0,-5 )mm

5.3 Gooseneck Tunnel

Length ..................3,315mm

Width ..................1,029 ( +3,0 )mm

Height ...................120 ( 0,-3 )mm

5.4 Inside Cubic Capacity

76.4 cu.m 2,700 cu.ft

5.5 Rating

Maximum Gross Weight ..............32,500 kg 71,650 lbs

Maximum Payload .............28,670 kg 63,210 lbs

Tare Weight (±2%) ...............3,830 kg 8,440 lbs
